Convertible Cast-Iron Jet Pumps

Product Details

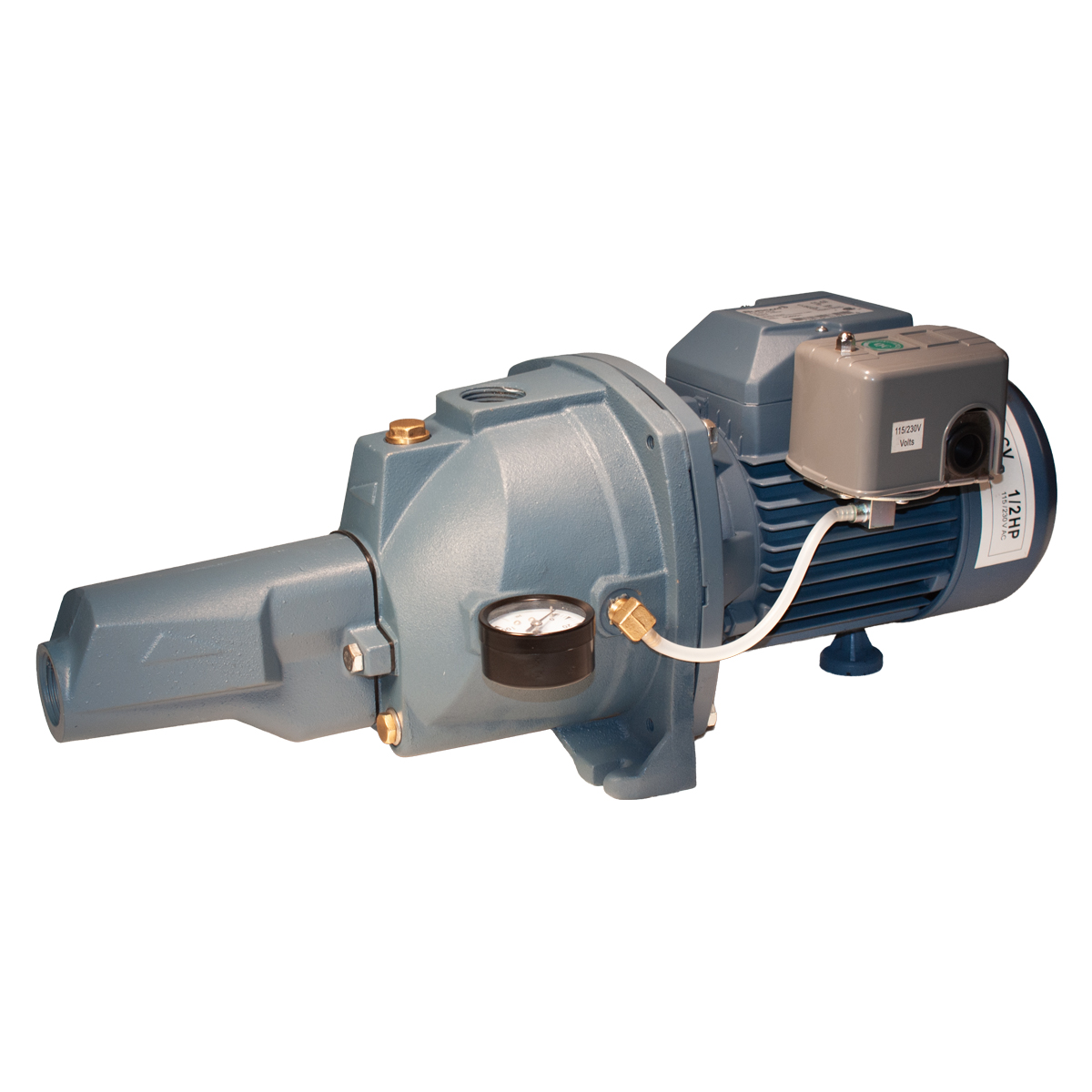

The BURCAM 506321 cast iron convertible jet pump is designed for use in conjunction with a captive air pressure tank to deliver potable water with a maximum vertical lift of 70 feet to the home, cottage or farm. This pump can be used either in a shallow well application with a maximum vertical lift of 25 feet, or in a deep well application (with the ejector in the well) for a maximum lift of 70 feet.  The 1/2 HP, dual voltage 115/230V, totally enclosed fan-cooled motor, bearing to bearing, is equipped with automatic thermal and overload protection and a full-time run capacitor.  The large cast iron body is easy to prime. The pump can deliver a maximum pressure of 65 PSI, but comes assembled with a 30/50 PSI pressure switch. The pump also includes a 0-100 PSI pressure gauge.   The capacity is up to 805 US GPH (shallow well application) and 650 US GPH (deep well application).

___________________________________________________________________________________________________________________________________

The 3/4 HP, dual voltage 115/230V, totally enclosed fan-cooled motor, bearing to bearing, is equipped with automatic thermal and overload protection and a full-time run capacitor.  The large cast iron body is easy to prime.  The pump has a 1-inch NPT suction and discharge. The pump can deliver a maximum pressure of 65 PSI and comes assembled with a 30/50 PSI pressure switch. The 506721 pump also includes a 0-100 PSI pressure gauge.   The capacity is up to 820 US GPH (shallow well application) and 685 US GPH (deep well application).

Features and Benefits

• Totally enclosed fan-cooled motor 115/230V, 60Hz
• Bearing to bearing stainless steel motor shaft
• Automatic thermal and overload protection
• Full-time run capacitor
• Easy to prime large pump body
• 1/2 HP and 3/4 HP options
• 1’’ NPT suction and discharge

Product Specifications
