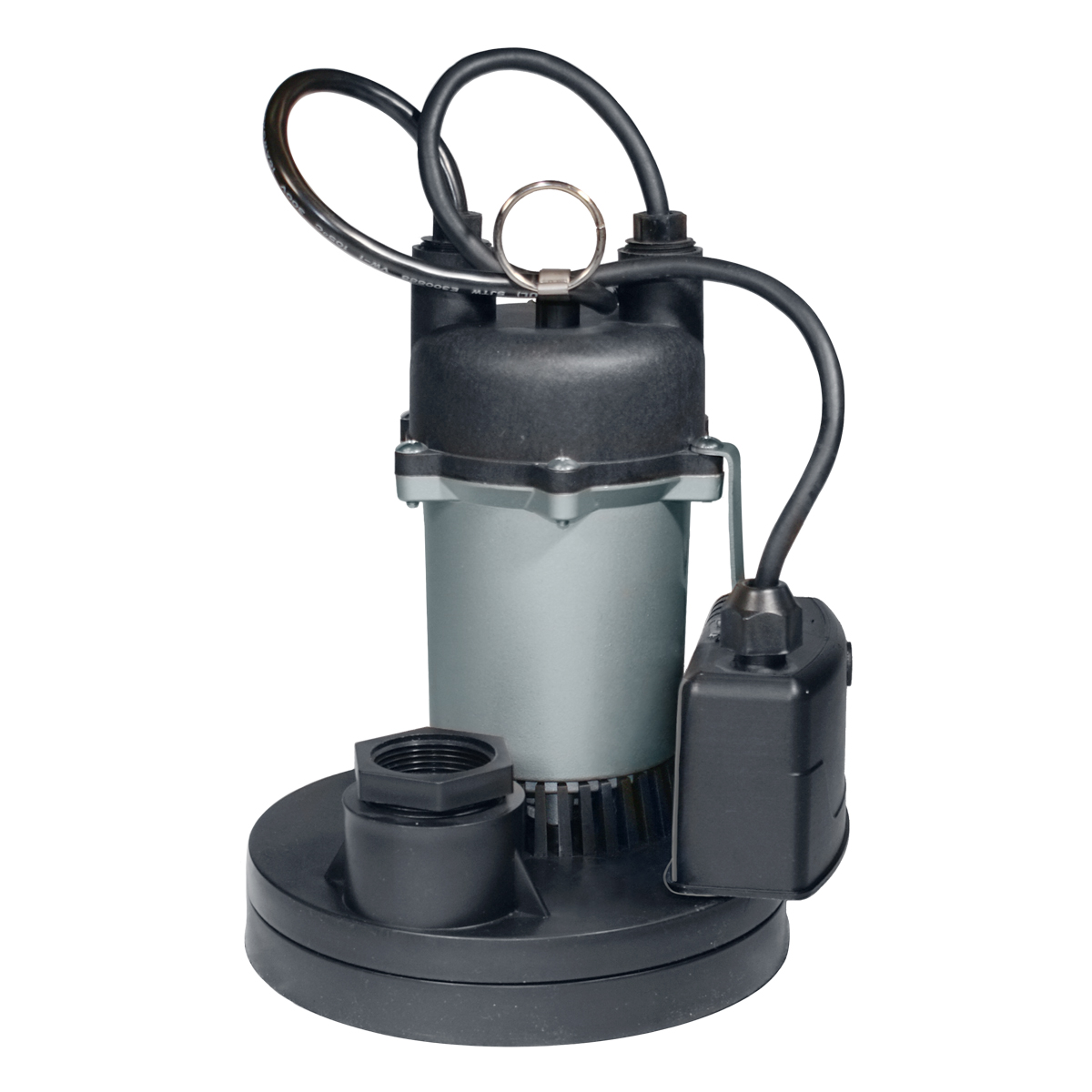

Zinc-Plated Sump Pump with Electronic Switch

  • Added value!
  • Ideal for automatic drainage of residential basement sump pits
  • Zinc plated motor housing for longer motor life
  • Reduces heat
  • Stops premature rust
  • The electronic float starts the pump when the water level reaches 4 1/2’’ (± 1’’)
  • View More Details

Replaces pedestal and submersible sump pumps and designed for a permanent installation in a 10’’ diameter sump basin and larger.

Product SKU:

300500ZS

UPC:

772910500047
2
year limited
warranty
Categories:
Find Nearest Distributor
2
year limited
warranty

Have a question? Give us a call!

800-361-1820
Zinc-Plated Sump Pump with Electronic Switch

Replaces pedestal and submersible sump pumps and designed for a permanent installation in a 10’’ diameter sump basin and larger.

Product Details

The BURCAM 300500ZS submersible sump pump is designed for use in residential applications either in a new installation or to replace an existing pedestal or submersible sump pump.   The 1/3 HP, 115V oil-cooled motor includes automatic thermal and overload protection.  The innovative foolproof electronic switch ensures automatic operation of the pump, can be used in a 8-inch diameter basin or larger, and is suitable for shallow sump pits.  The zinc-coated motor housing offers better heat dissipation and greater resistance to corrosion than aluminium.  The pump body is corrosion-resistant thermoplastic. The maximum head is 18 feet and the capacity is up to 3000 US GPH.  ON = 4.5 +/- 1 inch; OFF = 2 inch

Features and Benefits
  • 115V, 60Hz motor, with thermal and overload protection
  • 1 1/2’’ discharge with 1 1/4’’ reducer
  • Oil-cooled motor
  • 8’ electrical cord
  • Electronic switch
Product Specifications

Horsepower:

1/3 HP

Motor Housing:

Zinc-Coated Aluminum

Voltage:

115V

Hertz:

60 Hz

Discharge:

1-1/2 in. NPT

Float Type:

Electronic

Max Head:

18 ft.

Cord Length:

8 ft.
