Duplex Sewage Ejector Pumps

  • Back-up duplex system
  • 2’’ solid handling capabilities
  • Made of rugged cast iron and stainless steel (400401TW)
  • Made of rugged cast iron (400504TW)
  • View More Details

Replaces sewage pumps and designed for a permanent installation in a sewage basin.

Product SKU:

400401TW, 400504TW
2
year limited
warranty
Categories:
Find Nearest Distributor
2
year limited
warranty

Have a question? Give us a call!

800-361-1820
Duplex Sewage Ejector Pumps
Duplex Sewage Ejector Pumps

Replaces sewage pumps and designed for a permanent installation in a sewage basin.

Product Details

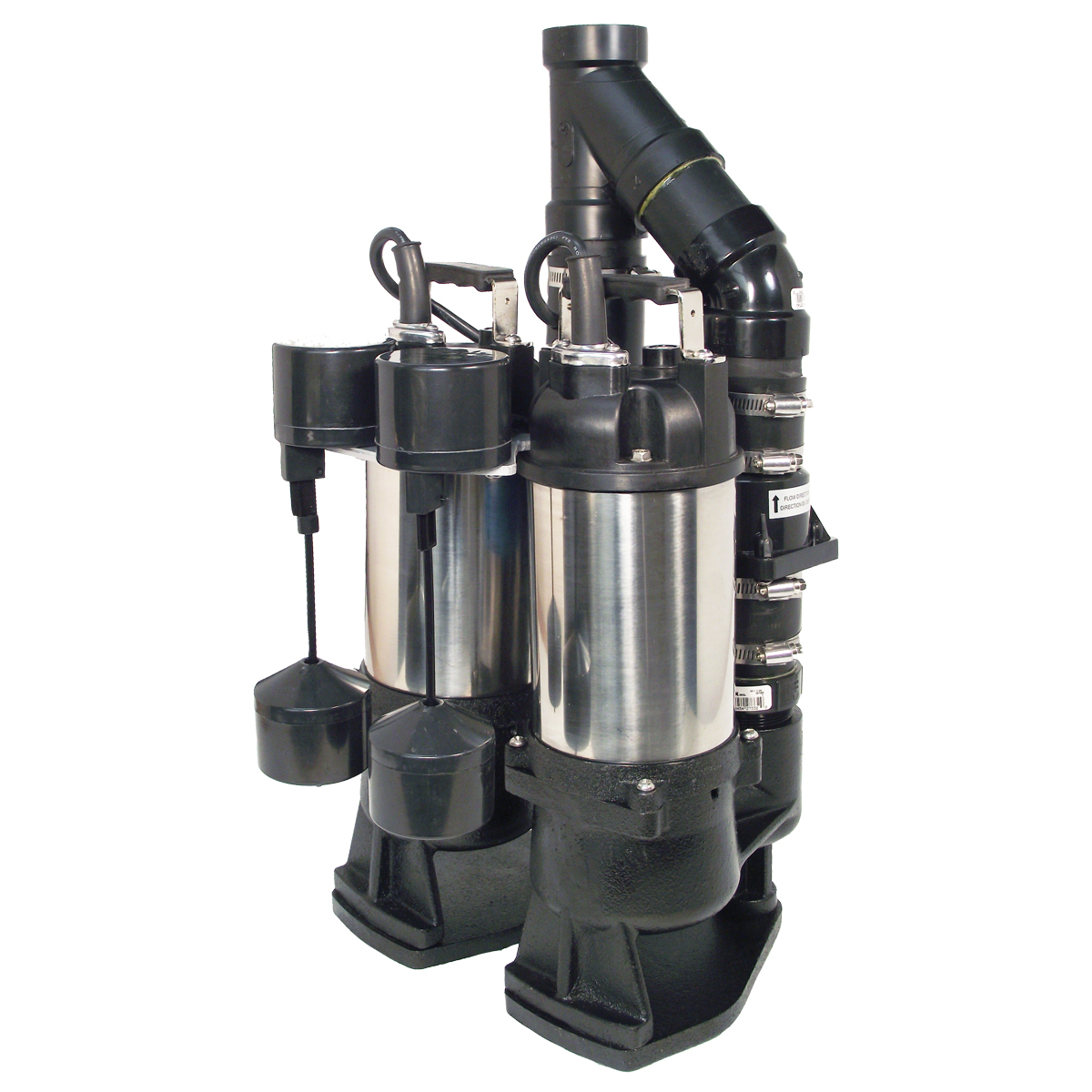

The BURCAM 400401TW duplex submersible sewage ejector pump is designed for residential sewage applications to eliminate solids up to 2” in diameter.  The stainless steel motor casing and cast iron base provides strength and longevity.  The 1/2 HP, 115V, 60 Hz water-cooled motor includes automatic thermal and overload protection.  The piggyback tethered float switch ensures automatic operation of the pump. This pump can be used in a new installation or to replace an existing sewage pump.  The maximum head is 25 feet and the capacity is up to 4900 US GPH and when the two pumps are running, the capacity is up to 9740 GPH.

___________________________________________________________________________________________________________________________________

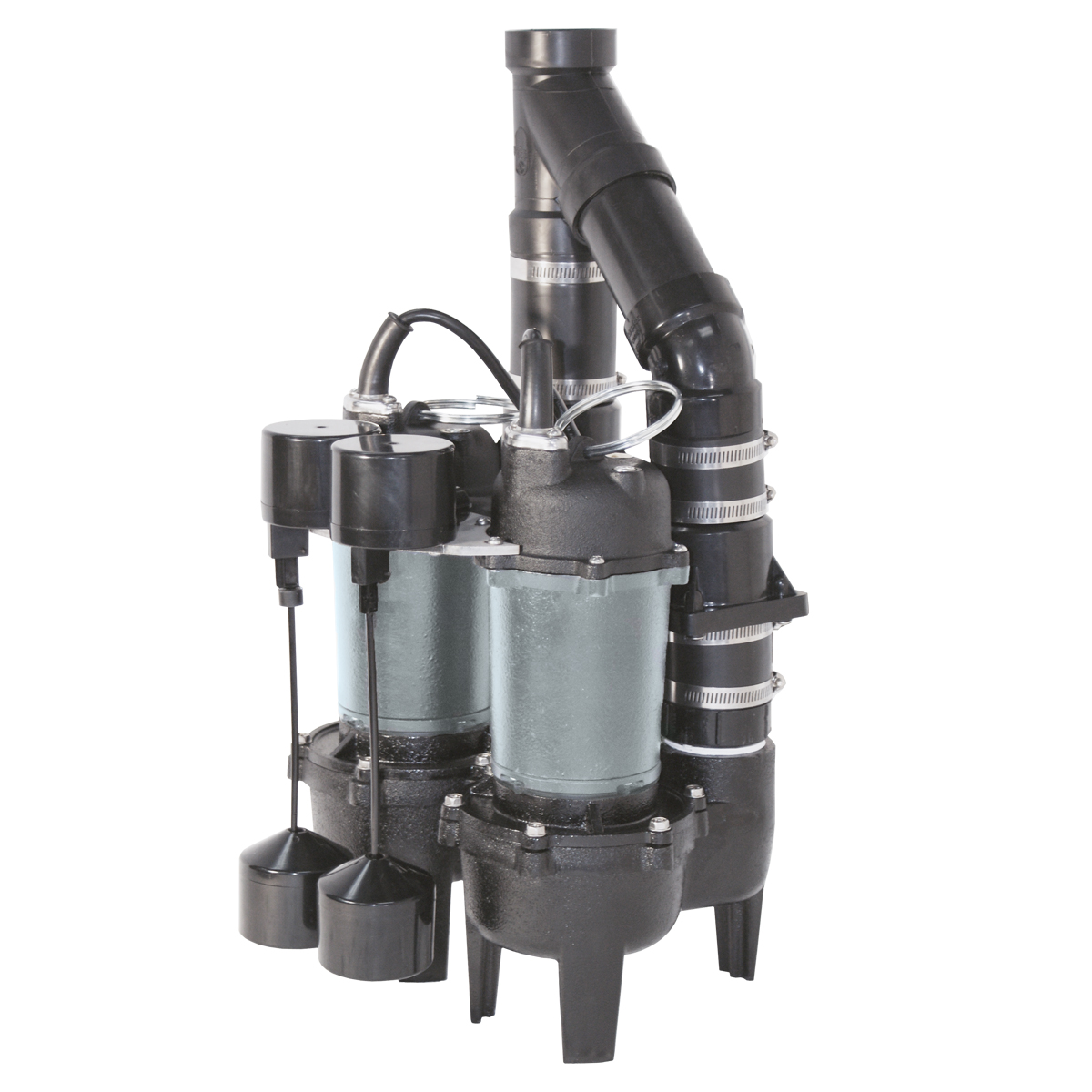

The BURCAM 400504TW duplex submersible sewage ejector pump is designed for residential sewage applications to eliminate solids up to 2” in diameter.  The pump features a robust cast iron body and a clog-free Noryl vortex impeller.  The 1/2 HP, 115V, 60 Hz oil-cooled motor includes automatic thermal and overload protection.  The piggyback tethered float switch ensures automatic operation.   This pump can be used in a new installation or to replace an existing sewage pump.  The maximum head is 15 feet and the capacity is up to 3600 US GPH and when the two pumps are running, the capacity is up to 7100 GPH.

Features and Benefits
  • Automatic ON-OFF operation
  • 115V, 60Hz motor, with thermal and overload protection
  • 2’’ suction and discharge (400401TW)
  • 2’’ NPT discharge (400504TW)
  • Water-cooled motor (400401TW)
  • Oil-cooled motor (400504TW)
  • 20’ electrical cords
  • Vertical switches
Product Specifications

Horsepower:

1/2 HP

Pump Body:

Stainless Steel

Motor Housing:

Cast Iron

Solid Handling:

2 in.

Amps:

115V

Hertz:

60 Hz

Discharge:

2 inch

Float Type:

Vertical

Max Head:

25 ft.

Cord Length:

19 ft.
